AT-625

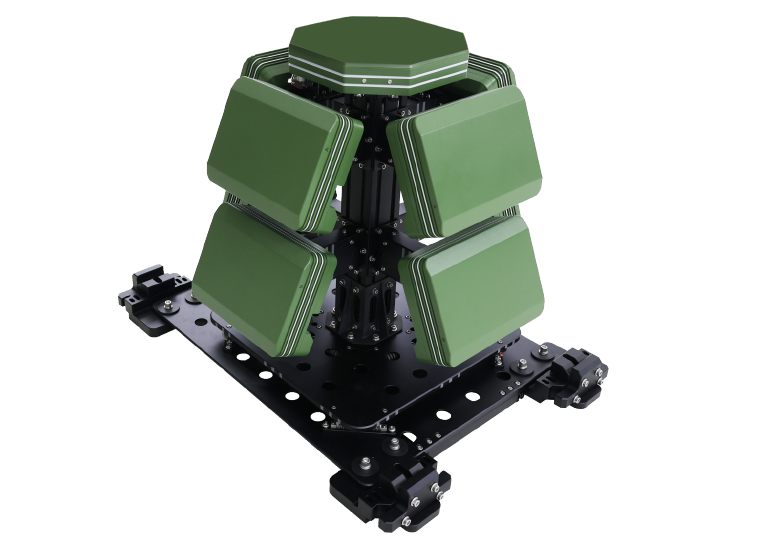

Vehicle-mounted Four-sided Formation Counter-UAV Equipment
Vehicle-mounted Counter-UAV System, highly integrated detection, identification, countermeasure and navigation decoy functions. Supports rapid deployment on various vehicles without modification. Moves quickly to arrive at the defense site without field limitation. Supports dynamic defense during movement. Due to SDR technology, with low power and good interference effect. Supports algorithm upgrading by software to protect hardware investment and user's benefit.
Features
Effective Jamming against FPVs
Based on SDR architecture, the equipment can effectively jam against various brands of UAVs and DIY FPV drones
All-model Countered
Covering signal frequency bands such as image transmission, remote control, navigation, etc. for various types of UAVs both domestically and internationally
Flexible Jamming Options
Support protection for single vehicle/fleet, with the option to choose between counter-FPV only /counter-FPV-and-UAV configurations based on defense needs
Military-level Reliability
Military-level structural design, waterproof and dustproof, heat-resistant, corrosion-resistant and anti-seismic, can meet various combat scenarios
Specifications
Parameter Description
Interference Unit Jamming Mechanism SDR technology
Jamming Frequency Band(Counter-FPV Unit) 800MHz / 900MHz / 2.4GHz / 5.8GHz
Jamming Frequency Band(Counter-UAV Unit) 1.2GHz / 1.5GHz / 2.4GHz / 5.2GHz / 5.8GHz
Jamming Signal Type lmage transmission signal, remote control signal, and navigation signal of UAVs’
Defense  Direction Single unit: Horizontal >90°, tilt >45°
Four-sided formation to realize 360° coverage
Jamming Distance ＞1km ( jamming/communication ratio = 1:1 ), DIY FPV ( TBS/ELRS protocol )
＞1km ( jamming/communication ratio = 2:1 ), DJI Mini4 Pro/Mavic 3
Total Transmission Power ≤120W per unit ( configurable )
Basic Information Size 890*700*848mm ( with bracket )
Weight Counter-FPV four-sided formation: <150kg ( including bracket )
Counter FPV+UAV four-sided formation: <170kg ( including bracket )
Power Supply DC 24V
AC 220V to 24V ( with external adapter )
Protection Level IP66
Working Conditions -30℃~+55℃/Humidity not more than 93%, no condensation water
*Special Announcement: Due to the conversion period between product updates and online displays, there may be differences between the graphics and textual parameters shown on the page and the actual product. The graphics and textual contents are not used as the actual delivery basis. The specific product and technical parameters are subject to the determined actual product configuration. Customers who intend to purchase, please contact AWP sales personnel in a timely manner to confirm. AWP reserves the right to change image parameters and provide final interpretation.
