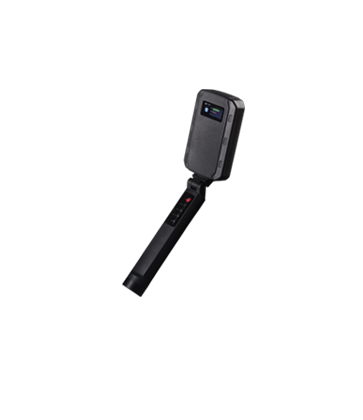

AT-808
Electronic Listening Device
A specialized listening device that uses radio frequency technology to detect suspected mechanical displacement devices in a target area. Electronic listeners can detect electronic pointer timed detonators and mechanical timed detonators hidden under various packaging coverings. Electronic triggering devices include timed triggering devices made from electronic meters, pagers and various types of remote control devices. Electronic listener support local and remote listening function, and can be used with drones and robots to realize remote control distortion-free listening function, to facilitate the remote operation of explosive detonation devices in the scene of security clearance clearance work. At the same time, electronic listeners can also be used as anti-reconnaissance security technology equipment, used to detect electronic eavesdropping devices and hidden video devices. With high sensitivity, long detection distance, the ability to penetrate the packaging cover, easy to carry and use.
As the necessary equipment for security check and explosion-proof, the electronic listening device is widely used in security check places such as guards, public security, airports, stations, ports and other security check places, and it is an important tool and equipment for security check and explosion-proof.
Features
Self-developed
The use of independent research and development of nonlinear harmonic detection technology and detection algorithms, security is greatly guaranteed
High Positioning Accuracy
The product adopts RF listening detection technology, featuring high precision positioning
Long-range Undistorted Listening
Collaborates with drones and robots to achieve long-range undistorted listening function
Low Noise
Adopts built-in non-destructive sound detection technology and noise elimination technology to realistically restore the original sound
Long Standby Time
Low power consumption, the device supports 20 hours of long-time operation
High Reliability
Supports IP65 protection rating
Applications
Specifications
Parameter Description
Operating Voltage 3.7V
Antenna Polarization Method Circular polarization
Display LCD
Noise-cancelling Headphones ≥-20dB（A）
Remote Listening Function Supported
Endurance Time Lithium battery, ≥20 hours (max power consumption)
Protection Level IP65
Detection Distance

Mechanical watches ≥2.5m;

Mechanical alarm clocks ≥0.5m;

Electronic timing devices ≥0.5m;

Digital timers ≥0.5m
Penetration

Mechanical watches: 100mm thick polyethylene foam + 200mm thick A4 printing paper (70g);

Mechanical alarm clocks: 100mm thick polyethylene foam + 200mm thick A4 printing paper (70g);

Electronic timing devices: 100mm thick polyethylene foam + 200mm thick A4 printing paper (70g);

Digital timers: 100mm thick polyethylene foam + 200mm thick A4 printing paper (70g)
Size 209mm*132mm*154mm
Package Size 410mm*290mm*268mm
Weight 0.96kg
Working Temperature -30℃~55℃
Working Humidity ≤93%, no condensate
*Special Announcement: Due to the product update and network display the existence of the conversion period, the page graphic parameters may be different from the actual product, the page graphic content does not serve as the basis for the actual delivery of specific products and technical parameters to determine the actual product configuration shall prevail. Intention to buy customers, please contact the sales staff to confirm in a timely manner, AWP retains the right to change the picture parameters and the final interpretation.
