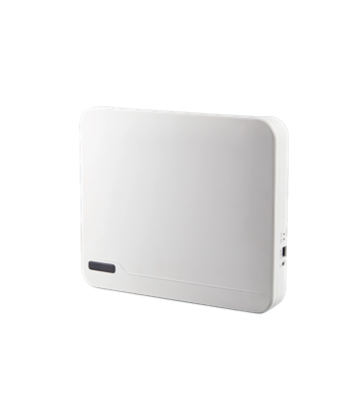

AT-501
5G Wireless Signal Jammer
5G cell phone signal blocker effectively blocks 2G, 3G, 4G, 5G mobile networks and Bluetooth and WIFI wireless communication signals of 4 major carriers, namely China Mobile, China Unicom, China Telecom, and China Radio and Television. Designed based on SDR architecture, it only interferes with terminal-side equipment, without any interference to operators' base stations, does not affect telecom operators' public communication services, and can be easily upgraded and expanded according to the development of communication technology.
It can be widely used in government, public security, justice, prisons, military, educational examinations, enterprises and other fields:
- Strictly controlled areas: prisons, detention centers, major exams to prevent cheating;
- Business security: R&D core technology, intellectual property protection, classified and sensitive departments, etc;
- Confidential meetings: major confidential meetings of party and government organizations and enterprises, closed bid evaluation, etc;
- Production security: gas stations, oil depots prohibit phone calls to prevent explosions and other accidents, production lines and workshops to ensure production safety and efficiency.
Features
All-standard Signal Jamming
Supports signal jamming for 2G/3G/4G/5G mobile networks, 2.4G Bluetooth devices, 2.4G/5.2G/5.8G WIFI wireless devices, commonly used remote controls, etc.
SDR Architecture
The product is designed and developed based on SDR technology architecture, no need to replace the hardware equipment. It can be flexible adapted to the future mobile communication networks bands through software upgrades, and effectively protect the investment in equipment
Signaling Jamming
Based on 3GPP communication protocol standard signaling jamming algorithm, TDD mode only jamming with downlink time slots and terminal equipment, and does not interfere with the operator communication base stations
Stable Jamming Effect
Based on signaling-level physical layer jamming, it sends a continuous broad-spectrum modulated signal, which does not cause unstable jamming due to the existence of jamming gaps compared to other sweeping techniques
Flexible Frequency Band Setting
Supports individual setting and adjustment of wireless network signals in each frequency band based on customer application scenarios, and effectively defines shielding boundaries through transmitting power control to reduce the boundary interference
Built-in Antenna
Easy to install the equipment, solving the installation issues of traditional products like screwing the wrong antenna or screwing loosely, that affect the normal operation of the equipment, while enhancing the overall aesthetics of the product
Specifications
Parameter Description
Interference Frequency Range

Channel 1: 934-960MHz              Channel 2: 2300-2370MHz              Channel 3: 3400-3500MHz

Channel 4: 3500-3600MHz          Channel 5: 869-880MHz                  Channel 6: 2010-2170MHz

Channel 7: 2515-2615MHz          Channel 8: 758-798MHz                  Channel 9: 2615-2675MHz
Channel 10: 1805-1915MHz        Channel 11: 2400-2485MHz            Channel 12: 3300-3400MHz

Channel 13: 4800-5000MHz        Channel 14: 5150-5350MHz            Channel 15: 5725-5850MHz
Interference Mode SDR (Software Defined Radio)
Jamming Distance

(Environmental background intensity RSRP <-85dBm~-90dBm)

High power: facing distance 10-12m, 120° sideline distance 6-8m

Medium power: facing distance 8-10m, 120° sideline distance 4-6m

Low power: facing distance 6-8m, 120° sideline distance 3-5m
Jamming Distance <20W (single RF channel mode power <2W)
Number of RF Channels 14
Antenna Type Built-in directional antenna (antenna directionally >120°)
Number of Antenna Built-in integrated
Power Supply AC/DC adapter for power supply
Size 348mm*287mm*62mm
Weight 2.6kg
Working Temperature -20℃~45℃
Storage Temperature

 -30℃~70℃
*Special Announcement: Due to the product update and network display the existence of the conversion period, the page graphic parameters may be different from the actual product, the page graphic content does not serve as the basis for the actual delivery of specific products and technical parameters to determine the actual product configuration shall prevail. Intention to buy customers, please contact the sales staff to confirm in a timely manner, AWP retains the right to change the picture parameters and the final interpretation.
