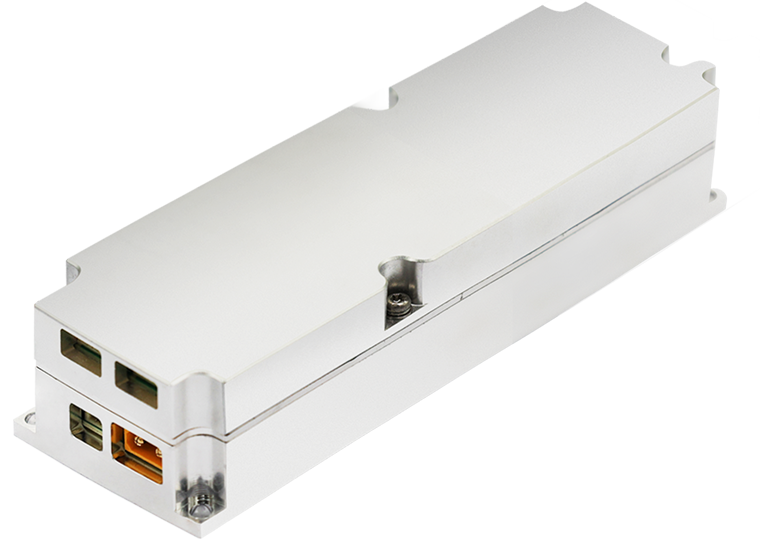

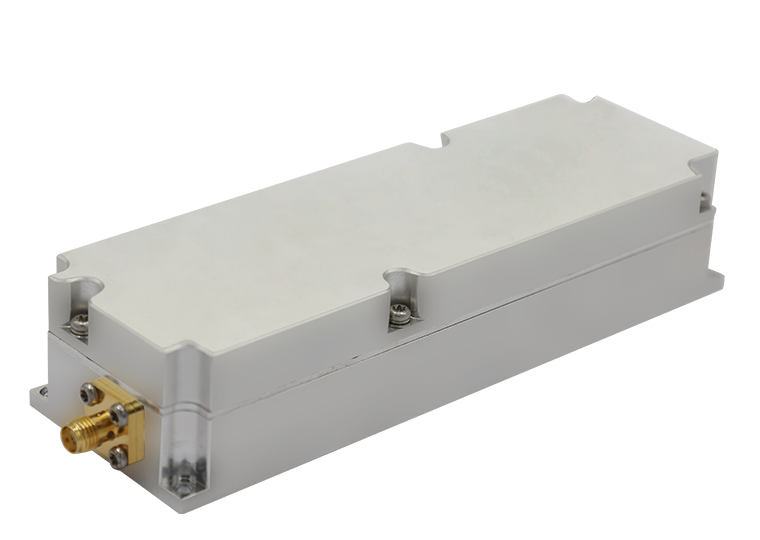

SDR Counter-UAV Digital Module
SDR Counter-UAV Digital Source Module, a universal digital RF module based on Software Defined Radio architecture, consisting of two parts: digital source and power amplifier unit. The digital source can output in the frequency range of 20MHz~6000MHz, with any configuration within a bandwidth of 200MHz, and has precise frequency characteristics. Digital modulation interference codes are automatically generated for drone types and support common protocols such as ELRS, Crossfire, Flysky, Ocusync, Lightbridge, and Skyloas. Modular design, compact and compact, with flexible interfaces and easy integration.
Features
Strong
Full frequency coverage, effectively jamming with all types of drones, especially FPV drones; Generate targeted jamming codes to achieve longer effective jamming distances with lower output power
Small
Small size and lightweight, compatible with various product forms such as portable/fixed/vehicle-mounted, etc
Simple
Flexible interfaces and strong adaptability; Provide one-stop component selection for easy product implementation
Sustainable
Support software upgrade jamming codes to continuously ensure the effectiveness of devices and significantly reduce investment costs
Specifications
Parameter Description
Operating Frequency 100MHz~6GHz, full frequency bands can be customized
Mainstream Frequency Band 400MHz / 868MHz / 900MHz / 915MHz / 1.2GHz / 1.4GHz / 2.4GHz / 5.2GHz / 5.8GHz
Operating Voltage DC 28-32V
Operating Current 4.5A Max
Output Power 25W Max ( 44dBm ) /  50W Max ( 47dBm )
Output RF Interface SMA/50Ω
Control Interface IO enables,RS-422 communication
Weight 275g±10g
Working Temperature -40℃~+55℃
*Special Announcement: Due to the conversion period between product updates and online displays, there may be differences between the graphics and textual parameters shown on the page and the actual product. The graphics and textual contents are not used as the actual delivery basis. The specific product and technical parameters are subject to the determined actual product configuration. Customers who intend to purchase, please contact AWP sales personnel in a timely manner to confirm. AWP reserves the right to change image parameters and provide final interpretation.
