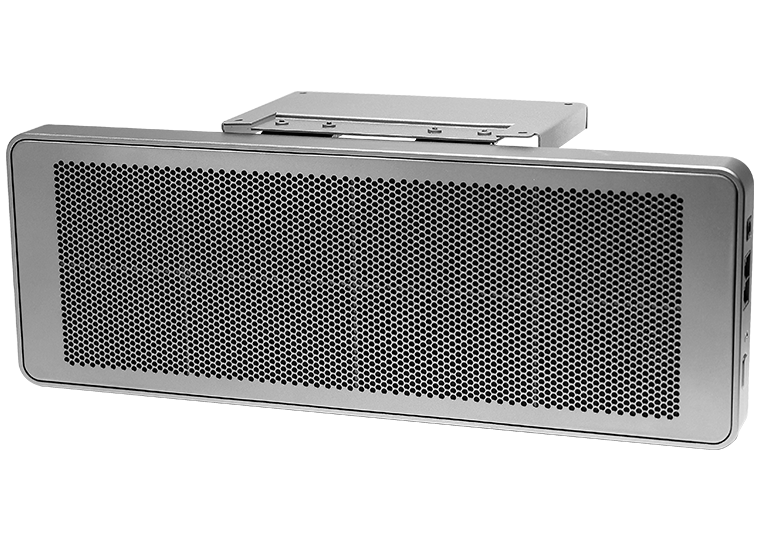

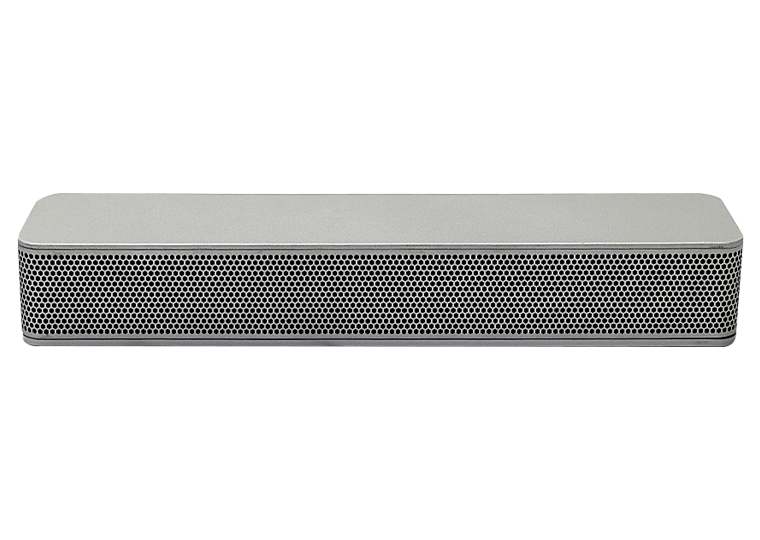

AT-315/316
Under-desk/Desktop Audio Jammer
AT-315/316 is specially designed for the conference room scene recording shielding, the use of independent research and development of the Wave Shield? ultrasonic mixer and non-linear acoustic mixing technology, through the issue of the human ear can not be perceived by the random noise ultrasonic, affect and cover the cell phone, video camera, and other types of electronic equipment recording sound recording to achieve the effect of interference with the audio, hindering the effect of the recordings, the true sense of sensory-free! Shielding. You do not need to worry about the interference of the audio can be restored, AT-315/316 issued by the band noise ultrasonic disorder and randomness, can not be corrected through the later technology and means of restoration, to completely avoid the risk of information leakage and dissemination of the AT-315/316 support for the meeting room area and table size with different numbers of devices, and to achieve the unified control of the network.
Security and privacy: confidential meeting rooms in key government departments, national security departments, hotels, and corporations
Features
Wireless Networking
Up to 32 slave devices (315/316) can be connected at the same time through Bluetooth wireless networking. You can enter and exit the network one by one by using the SN code
Wired Networking
Up to 32 slave devices (315/316) can be connected at the same time through RS232 wired networking. Automatically enter the network after successful connection
? Proactive Defense
Dealing with recording and eavesdropping in all types of important communications
Safe and Senseless
Adopts ultrasonic band noisemaking jamming technology, effectively jamming recording devices. It is safe and healthy with no human ear reception and no electromagnetic radiation. The product complies with the relevant national safety industry standards, passing the authorized test by National Center for Quality Supervision and Inspection
Flexible Deployment
Different numbers of under-desk audio jammers can be matched according to the size of the conference room and the size of the conference table. Can be connected to networking through communication cable or wireless Bluetooth. The touch-screen Audio Jammer Control Terminal can be used for centralized control
Metting Guard Network Management System:
It can effectively manage the audio jammers of several confidential meeting rooms through computer network, and provide the customer's security management unit with equipment status monitoring, equipment operation and maintenance history data traceability and query. It is available to interface with the customer's current conference management system
Specifications
Parameters Technical Specifications
Power Consumption <45W
Standard Voltage DC 20V (PD 3.0)
Jamming Objects Android phones, iPhones, recording pens, detectaphones, etc.
Jamming Distance Huawei Mate 40 >2m@70dB; iPhone 12 >1.5m@70dB
Number of Probes 96/72
Jamming Angle 60°@1m
Networking Interface BLE/RS232
Wireless Networking Distance >10m
ESD (Electrostatic Discharge) 6KV through direct contact, 8KV in the air
Weight Approximately 1,500g/Approximately 730g
Color Silver gray
Size 354mm*127mm*26mm / 325mm*96mm*64mm
Working Temperature -10℃~45℃
Working Humidity ≤85%, no condensate
*Special Announcement: Due to the product update and network display the existence of the conversion period, the page graphic parameters may be different from the actual product, the page graphic content does not serve as the basis for the actual delivery of specific products and technical parameters to determine the actual product configuration shall prevail. Intention to buy customers, please contact the sales staff to confirm in a timely manner, AWP retains the right to change the picture parameters and the final interpretation.
