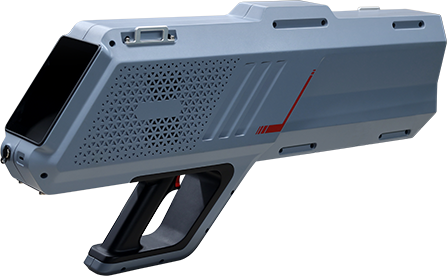

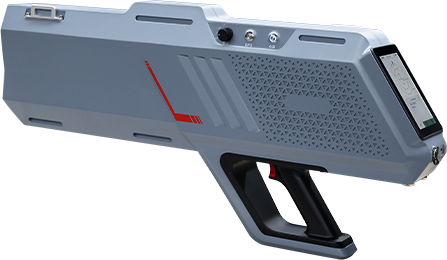

AT-605
Portable Counter-UAV Equipment
Detection and countermeasure all-in-one design, without any extra parts, flexible and convenient for individual carrying. Supports 3km omni-directional detection and 2km directional interference for all types of common UAV in surrounding airspace. Equipped with SDR technology and visual auxiliary aiming system, it can detect, locate and identify UAV at 360°, and make comprehensive suppression, force the UAV to hover, return or land according to its own safe strategy.
Features
All-in-one Design
No external parts, easy to carry for individual soldiers, ready to use after power-on
Integrated
3km omni-directional detection and 2km directional countermeasure
SDR Efficient Interference
Using digital modulation interference source, can interfere with various types of UAVs
Multi-Frequency Interference
Based on SDR architecture, support multi-channel interference, covering common UAV frequency bands both domestically and internationally
Visual Positioning
Equipped with a visual auxiliary aiming system and a 5-inch display screen, which supports real-time display of target information, positioning and aiming of target positions, etc.
Investment Protection
Based on SDR architecture, algorithm upgrades can be done through software, without hardware replacement.
Applications
Specifications
| Parameter | Description | |
| Detection Unit | Detection Frequency Band | 2.4GHz, 5.8GHz, 900MHz (optional), 1.4GHz (optional) |
| Detection Signal Types | UAV data transmission signal, UAV remote control signal, WIFI signal | |
| Detection Distance | ≥3km (open environment), 0.5km~1km (urban environment) | |
| Direction-Finding Accuracy | 10° (open environment) | |
| Interference Unit | Interference Frequency Band | 900MHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.8GHz, 5.2GHz (optional), 5G mobile communication frequency band (optional) |
| Defense Direction | Directional antenna with 30° transmission angle | |
| Interference Distance | ＞2km, jamming/communication ratio > 10:1 | |
| Interference Response Time | <4s | |
| Basic Information | Information Display | 5-inch display: self-check status, drone model, jamming band, date time, battery level, interference duration, etc. |
| Battery Life | ≥60 minutes (full-frequency transmission on) | |
| Size | 700mm*322mm*100mm | |
| Weight | ≤4.5kg | |
| Protection Level | IP54 | |
| Working Temperature | -30℃~+45℃ | |
| Storage Temperature | -40℃~+70℃ | |
| 偵測單元2 | |
| 工作模式 | 無線電頻譜感知偵測 |
| 偵測頻段 | 2.4GHz、5.8GHz 、800MHz（選配）、1.4GHz（選配） |
| 信號類型 | 無人機數傳信號、無人機遙控信號、WIFI無人機信號 |
| 偵測距離 | ≥3km(空曠環境)，0.5km-1km(城郊環境) |
| 偵測天線 | 全向+定向天線 |
| 響應時間 | ≤4s |
| 虛警率 | ≤5% |
| 漏報率 | ≤5% |
| 報警方式 | LED顯示、聲音報警 |
| 測向精度 | ≤10°(空曠環境) |
*Special Announcement: Due to the conversion period between product updates and online displays, there may be differences between the graphics and textual parameters shown on the page and the actual product. The graphics and textual contents are not used as the actual delivery basis. The specific product and technical parameters are subject to the determined actual product configuration. Customers who intend to purchase, please contact AWP sales personnel in a timely manner to confirm. AWP reserves the right to change image parameters and provide final interpretation.
