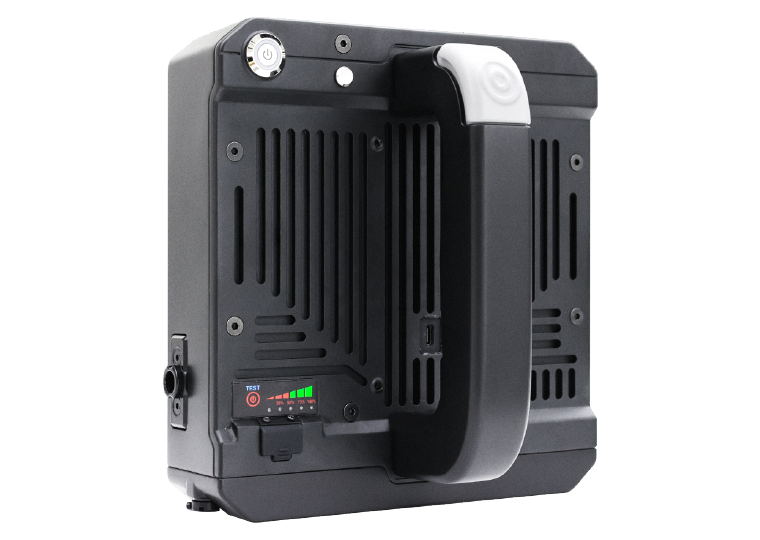

AT-623
FPV Killer
Based on SDR signal jamming technology, FPV Killer effectively blocks the remote control signal of FPV drones, preventing single soldiers from being attacked by FPVs and protecting their life safety. The product is small in size and lightweight, and is flexible and portable; Easy to operate, one soldier can quickly respond to counter suicide FPV attacks.
Features
Single-soldier Portable
Small in size and lightweight, easy to operate, one soldier can quickly respond to counter suicide FPV attacks
Efficient Jamming against All FPVs
Effectively jams against all FPV drones, and covers mainstream flight control protocols such as ELRS/TBS Crossfire
Long Working Hours
Powered by standard lithium batteries, can be quickly replaced, convenient and practical
Specifications
Parameter Description
Interference Unit Jamming Mechanism SDR technology
Jamming Objects DIY FPV drones, effective jamming against FPV drones with mainstream flight control protocols such as ELRS/TBS Crossfire
Defense Direction Directional jamming, horizontal 60°, tilt 30°
Jamming Distance ＞150m ( jamming/communication ratio = 1:2, open environment )
Total Transmission Power ＜35W
Jamming Response Time ＜2s
Basic Information Size 195*205*115 ( ±5mm )
Weight <1.6kg（ host ）
Power Consumption <100W ( full power transmission )
＜5W ( standby mode )
Power Supply/Charging 21700 chargeable lithium batteries;
Support batteries replacement, and whole machine charging
Working Hours ＞30min per time ( full power transmission )
Protection Level Ip54
Working Temperature -30℃~+45℃
偵測單元2
工作模式 無線電頻譜感知偵測
偵測頻段 2.4GHz、5.8GHz 、800MHz（選配）、1.4GHz（選配）
信號類型 無人機數傳信號、無人機遙控信號、WIFI無人機信號
偵測距離 ≥3km(空曠環境)，0.5km-1km(城郊環境)
偵測天線 全向+定向天線
響應時間 ≤4s
虛警率 ≤5%
漏報率 ≤5%
報警方式 LED顯示、聲音報警
測向精度 ≤10°(空曠環境)
*Special Announcement: Due to the conversion period between product updates and online displays, there may be differences between the graphics and textual parameters shown on the page and the actual product. The graphics and textual contents are not used as the actual delivery basis. The specific product and technical parameters are subject to the determined actual product configuration. Customers who intend to purchase, please contact AWP sales personnel in a timely manner to confirm. AWP reserves the right to change image parameters and provide final interpretation.
