AT-619

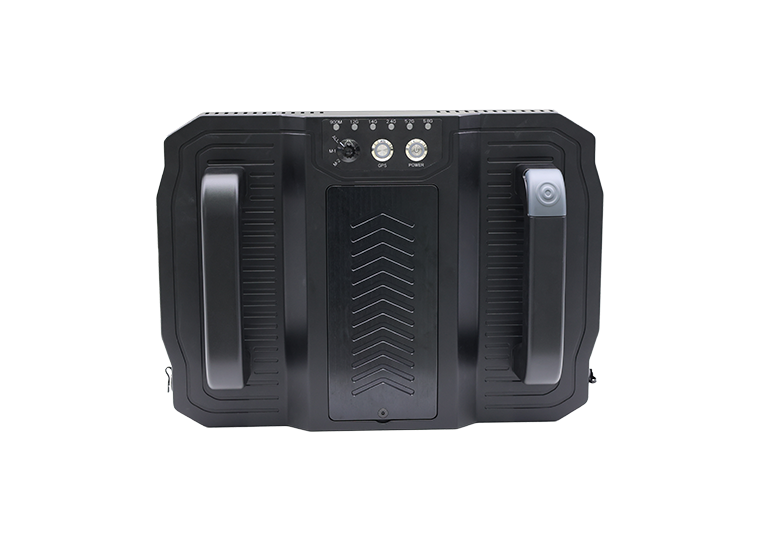

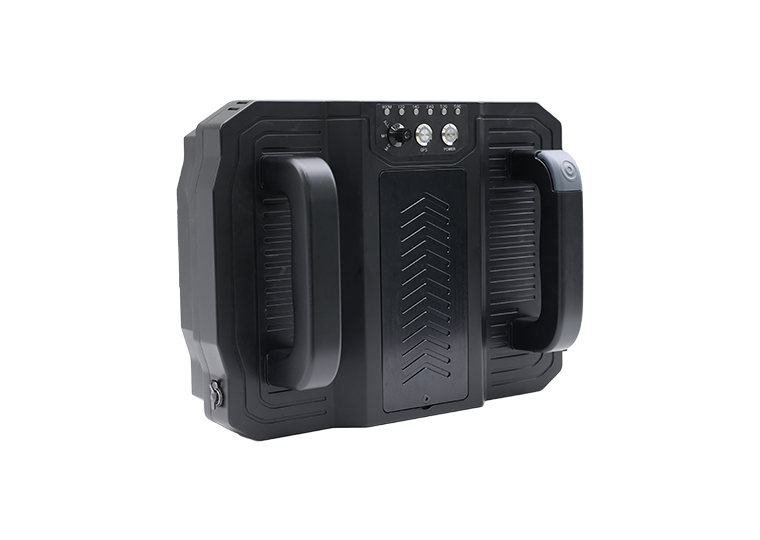

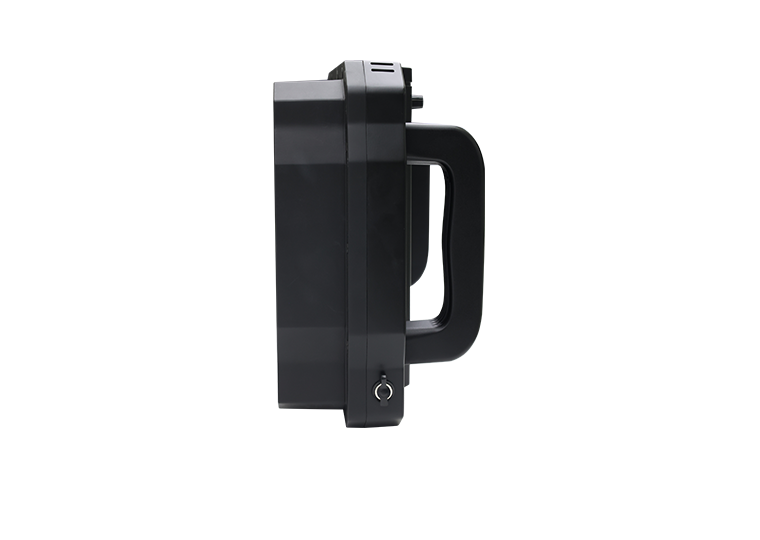

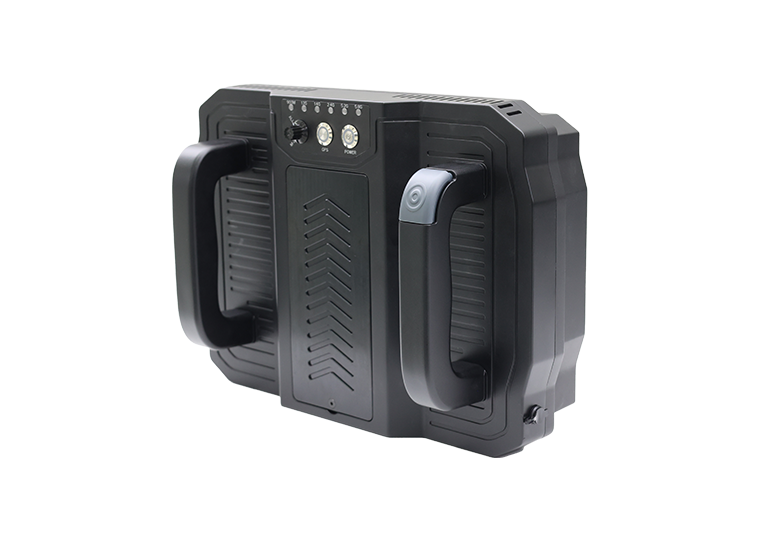

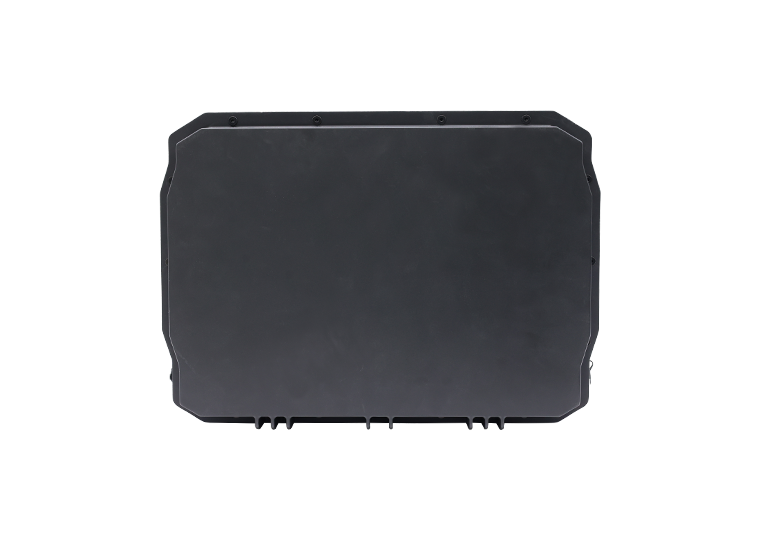

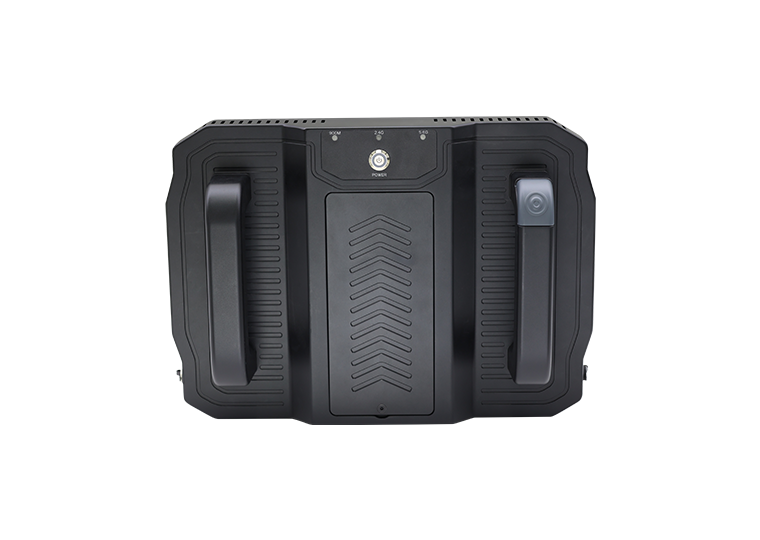

Portable Counter-UAV Shield
Based on SDR jamming technology, Portable Counter-FPV Shield supports different frequency-band configurations and can effectively block UAV signals such as data/image transmission, remote control, navigation, etc., especially for various FPV drones with good countermeasures. Overall flexible and portable, it adopts an IP54 level ultra durable shell, which is heat-resistant and corrosion-resistant. It can be quickly deployed in various scenarios such as counter-terrorism, important activities security protection, and base protection. Its appearance is concealed and not easy to cause panic.
Features
Portable and Concealed
Small in size and lightweight, flexible and portable; Shield-shaped design with high concealment, making it less likely to cause panic during use
Effective Jamming against FPVs
By using digital modulation jamming sources, it can efficiently block FPV drones' remote control/image transmission signals
Flexible Jamming Options
Two models to choose (counter FPV only/counter UAV and FPV), accurately matching mission
Continuous Effectiveness
Based on SDR architecture, it supports algorithm iteration to cope with challenges of new types of FPV drones
Specifications
Parameter AT-619A AT-619B
Interference Unit Jamming Mechanism SDR (Software Defined Radio)
Jamming Frequency Bands 800MHz~900MHz / 2.4GHz /
5.3GHz~5.9GHz		 800MHz~900MHz / 1.2GHz / 1.5GHz / 2.4GHz / 5.2GHz / 5.8GHz
Defense Direction Directional jamming
Jamming Distance ≥1km ( J/C ratio = 1:1 ), DIY FPV ( TBS/
ELRS protocol )		 ≥1km ( J/C ratio = 1:1 ), DIY FPV ( TBS/ELRS protocol )
≥1km ( J/C ratio = 2:1 ), DJI Mini4 Pro/Mavic 3
Total Transmission Power <90W <130W
Basic Information Size 440mm*250mm*150mm
Weight <4.5kg ( host with battery pack ) <5.5kg（ host with battery pack )
Power Supply/Charging Lithium battery pack; Support battery pack replacement, and whole machine charging
Working Hours ＞30min ( full power transmission ) ＞20min ( full power transmission )
Power Consumption ＜250W ( full power transmission )
＜15W ( standby mode )		 <350W ( full power transmission )
<35W ( standby mode )
Protection Level IP54
Working Temperature  -30℃~+45℃
Working Humidity ≤93%, no condensate
Storage Temperature  -40℃~+70℃
偵測單元2
工作模式 無線電頻譜感知偵測
偵測頻段 2.4GHz、5.8GHz 、800MHz（選配）、1.4GHz（選配）
信號類型 無人機數傳信號、無人機遙控信號、WIFI無人機信號
偵測距離 ≥3km(空曠環境)，0.5km-1km(城郊環境)
偵測天線 全向+定向天線
響應時間 ≤4s
虛警率 ≤5%
漏報率 ≤5%
報警方式 LED顯示、聲音報警
測向精度 ≤10°(空曠環境)
*Special Announcement: Due to the conversion period between product updates and online displays, there may be differences between the graphics and textual parameters shown on the page and the actual product. The graphics and textual contents are not used as the actual delivery basis. The specific product and technical parameters are subject to the determined actual product configuration. Customers who intend to purchase, please contact AWP sales personnel in a timely manner to confirm. AWP reserves the right to change image parameters and provide final interpretation.
