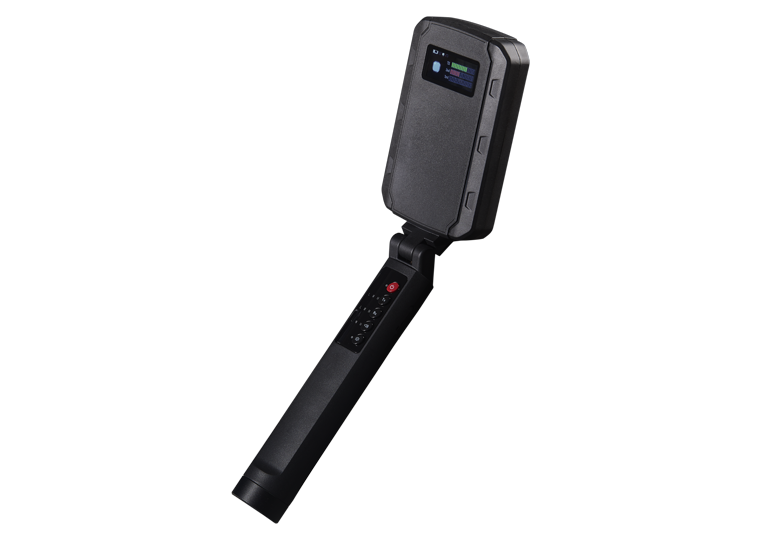

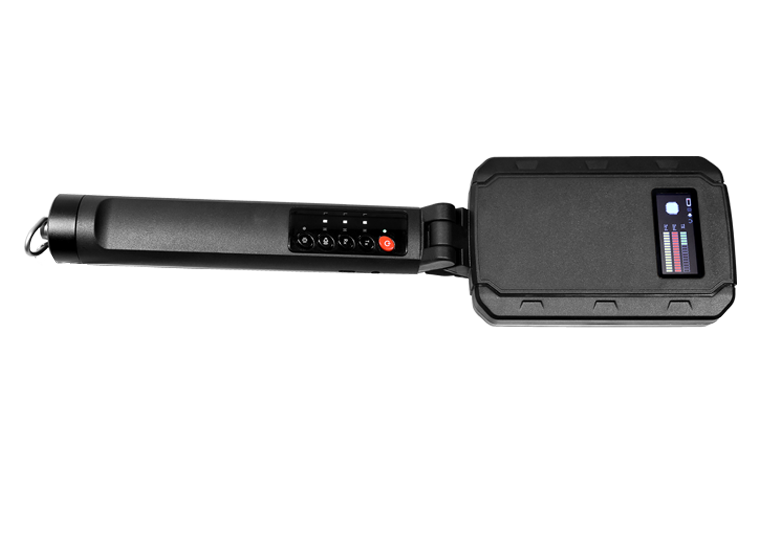

AT-802
Portable Nonlinear Junction Detector
A compact portable non-linear node detector that detects electronic devices hidden in walls, floors, ceilings, light fixtures, furniture or containers, regardless of whether they are transmitting signals or switched on and off, and can provide alarms through a variety of means such as displays, sound and vibration, so that the detectorists can find the target device, to protect the privacy of the organization and individuals.
Can be widely used in government, public security, prisons, justice, commercial security and personal privacy protection, etc.
Corporate trade secret protection: detecting unauthorized electronic devices hidden in important meeting rooms or confidential offices of the company, such as bugs, cell phones and SIM card-containing devices;
Explosive discharge: detecting electronic explosive devices and remote controls in dangerous areas;
Personal privacy protection: hidden in homes, hotels and other places of clandestine photography and recording devices, such as voice recorders, cameras and so on.
Features
Lightweight and Portable
Host weight ≤ 0.5kg, about one-third of the ordinary detector, small size, light weight, while the foldable design makes it more convenient to carry, support quick storage, can be easily put into the handbag or backpack, will not bring extra burden!
Automatic shutdown
Fully consider the behavioral habits of flexible operators and operational needs, when folded or long time without running the equipment, no need to press the button operation, you can automatically execute the shutdown command, to achieve energy-saving and power saving, to avoid excessive consumption of batteries
High positioning accuracy
Adopting 2400MHz RF detection technology, featuring high-precision localization
Good identification skills
Built-in spectrometer supporting second and third harmonic detection quickly and efficiently identifies semiconductor-containing devices and equipment, regardless of whether the device is powered on or off.
High penetration
With the ability to penetrate the bullet layer of 370mm brick wall, there is no place to hide the steganography equipment.
High sensitivity
Especially for SIM card devices with high sensitivity, to ensure that the secret book, cell phone communication devices can be quickly detected.
Low false alarm rate
Built-in non-destructive detection algorithms dramatically improve detection capabilities with very low false alarm rates
harmlessness
Equipment to meet HJ/T10.2 radiation environmental protection requirements, safe and harmless to the human body
Flexible and easy to operate
Simple and intuitive interface, fewer and more concise buttons, easy to operate manually
Specifications
Parameters Technical Specifications
Operating Frequency Band 2400MHz
Frequency Range 2.4GHz~2.5GHz
Received 2nd~3rd Harmonic Range 4.8GHz~5.0GHz, 7.2GHz~7.5GHz (2nd~3rd harmonic)
Pulse Mode Transmitting Power 0~1W (EIRP), pulse mode (max)
Reception Sensitivity ≤-125dBm
Battery Operating Time 6h (pulse mode, max power)
Battery Type Lithium battery
Detection Distance >6m, C-grade products that comply with GA1236-2015
Penetration Up to 370mm brick wall, C-grade products that comply with GA1236-2015
Operation Interface LCD display of received harmonic signal strength;
Supporting audio alert with headphones;
Supporting vibration alert
Size 370mm*96mm*38.5mm
Package Size 355mm*295mm*165mm
Weight ≤0.52kg
Working Temperature -20℃~55℃
Working Humidity ≤93%, no condensate
Working Temperature -20℃~45℃
Working Humidity ≤85%, no condensate
