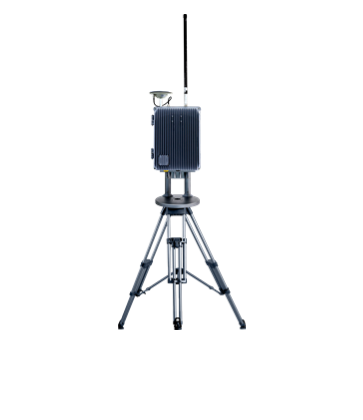

AT-611
Fixed Navigation Decoy Equipment
Fixed Navigation Decoy Equipment, based on SDR architecture, it can generate virtual navigation signals, and invade the navigation system of illegal UAV targets, making them unable to fly according to the predetermined trajectory, so as to achieve the purpose of driving away the illegal UAV or area defense.
Features
Full Signal Coverage
Cover GPS, GLONASS, Galileo and other navigation signals. Can cope with dual-mode and multi-mode navigation UAVs
Safe and Harmles
The transmitting power is milliwatt level, in line with the relevant national radio management regulations
Wide Range of Decoy Models
Effective for all UAVs equipped with satellite navigation systems, covering most civilian ones
Unattended
24/7 automatic active defense, can realize all-weather unattended real-time operation
Controllable Scope
The scope of the decoy area is adjustable and can be flexibly set according to actual needs
Strong Environmental Adaptability
IP66 protection level, capable of working in various complex environments
Specifications
Parameter Description
Decoy Unit Navigation Signal Type BDS, GPS, GLONASS, Galileo
Synchronization Accuracy <1μS
Radiation Power ≤10mW (customizable)
Direction 360° omni-directional
 Distance 500m~1km (customizable)
Swarm Defense ≥ 10 drones form different brands
Effective Time ＜5s
Boot Time ≤5min
Result Divert or land
Basic Information Size 403*307*180mm
Weight <15kg ( without the bracket )
Power Supply AC220V
Power Consumption ≤30W
Protection Level IP66
Working Temperature -30℃~+55℃
Working Humidity ≤93%, no condensate
Storage Temperature -40℃~+70℃
*Special Announcement: Due to the conversion period between product updates and online displays, there may be differences between the graphics and textual parameters shown on the page and the actual product. The graphics and textual contents are not used as the actual delivery basis. The specific product and technical parameters are subject to the determined actual product configuration. Customers who intend to purchase, please contact AWP sales personnel in a timely manner to confirm. AWP reserves the right to change image parameters and provide final interpretation.
