AT-690

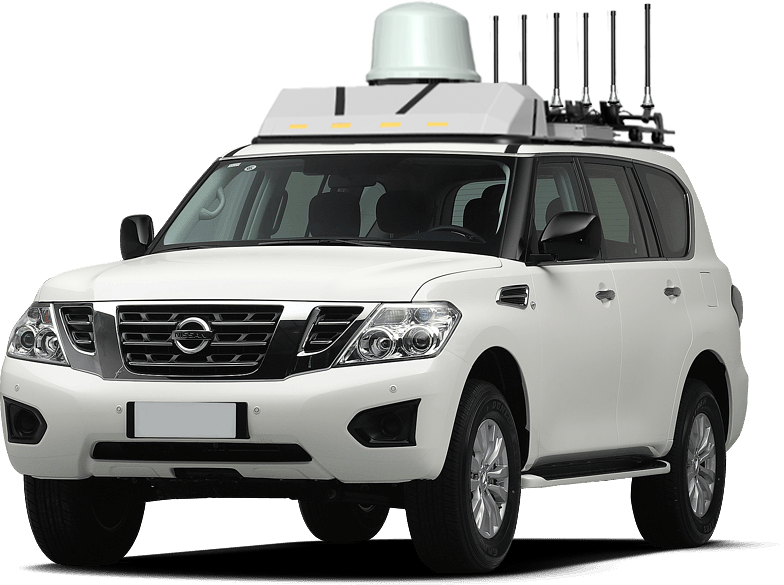

Vehicle-mounted Counter-UAV System
Vehicle-mounted Counter-UAV System, highly integrated detection, identification, countermeasure and navigation decoy functions. Supports rapid deployment on various vehicles without modification. Moves quickly to arrive at the defense site without field limitation. Supports dynamic defense during movement. Due to SDR technology, with low power and good interference effect. Supports algorithm upgrading by software to protect hardware investment and user's benefit.
Features
Mobile and Flexible
Vehicle-mounted design supports fast moving and arrival at the site in short time. Supports mobile detection and countermeasure
Multi-Function Integrated
Integrating passive detection, RF jamming and navigation decoy functions, with 5km ultra-long omni-directional detection and 3km automatic omni-directional defense
No Modification
Using patented FPC ultra-thin wire technology, assembly can be completed with simple installation without damaging the body structure. It is suitable for various brands of SUV vehicles
Investment Protection
Based on SDR architecture, algorithm upgrades can be done through software, without hardware replacement
Low Power Consumption
The on-board battery can be used to power equipment without the need for a power generator
Intelligent Battery Management
Equipped with the in-car battery management system that supports multiple power supply methods and adaptively adjusts charging power
Specifications
Parameter Description
Detection Unit Detection Method Radio spectrum sensing detection
Detection Frequency Band 800MHz、900MHz、2.4GHz、5.8GHz
Detection Signal Types UAV data transmission signal, UAV remote control signal, WIFI signal
Detection Direction 360° omni-directional
Detection Distance ≥5km (open environment), 3km (urban environment)
Direction-Finding Accuracy 3RMS°
Detection Response Time ≤4s
Alarm Method LED display or audible alarm
Interference Unit Interference Method Radio interference
Interference Mechanism SDR (Software Defined Radio)
Interference Frequency Band 400MHz, 900MHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz,
1.2GHz (optional), 1.4GHz (optional)
Defense Direction 360° omni-directional
Interference Distance ≥2km, interference/communication ratio>10:1
Interference Response Time <4s
Interference Expansion Navigation decoy function can be added
Basic Information Protection Level IP66
Working Temperature  -30℃~+55℃
Storage Temperature  -40℃~+70℃
*Special Announcement: Due to the conversion period between product updates and online displays, there may be differences between the graphics and textual parameters shown on the page and the actual product. The graphics and textual contents are not used as the actual delivery basis. The specific product and technical parameters are subject to the determined actual product configuration. Customers who intend to purchase, please contact AWP sales personnel in a timely manner to confirm. AWP reserves the right to change image parameters and provide final interpretation.
