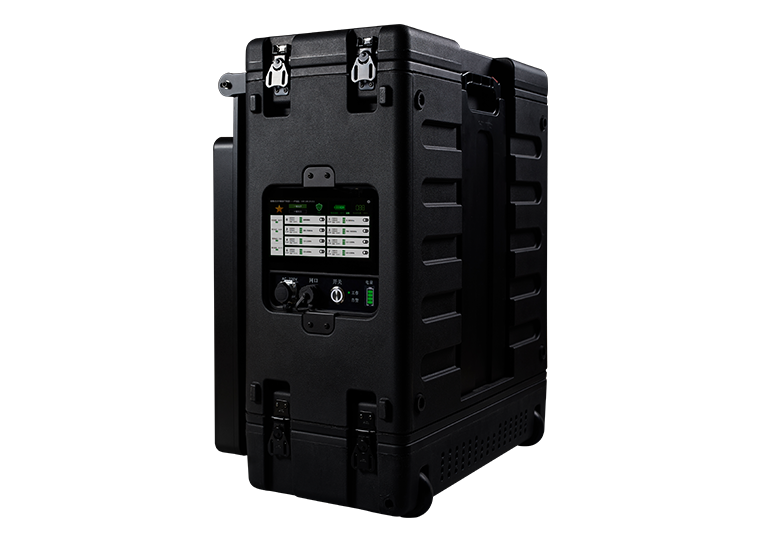

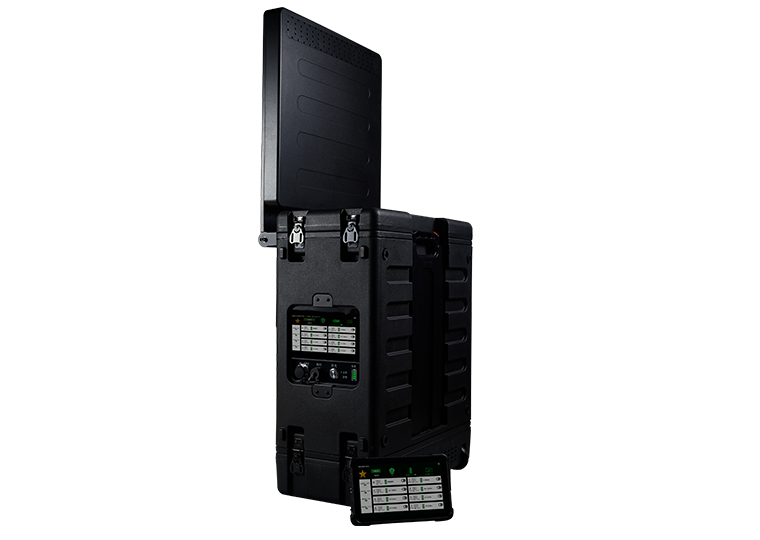

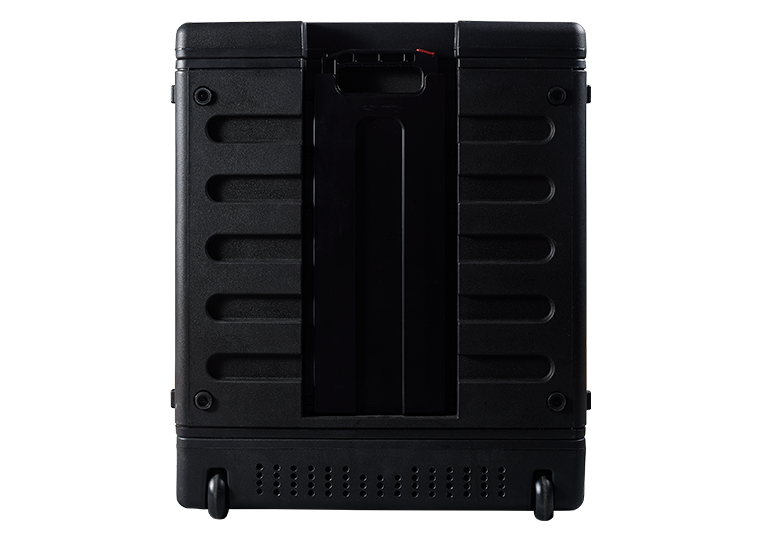

AT-502
Portable Frequency Jammer
Portable SDR frequency jammer, widely used in explosive detonation, technical investigation and other scenes that require wireless signal blocking and control. It can effectively block signals of remote control devices (including drones and unmanned vehicles), digital walkie-talkies, 2G, 3G, 4G cell phones (TD-LTE and FDD-LTE), 5G cell phones (radio and television 700MHz band, 2.6G, 3.5G, 4.8G, 4.9G), bluetooth, 2.4G, 5.8G WIFI and so on.
Apply to the detonation, technical investigation and other need for wireless signal blocking and control of the scene.
Features
Full-standard Signal Jamming
Seamless coverage of all frequency bands from 8MHz to 6500MHz
SDR Architecture
Based on SDR architecture. Advanced SDR algorithms and jamming strategies can achieve lower power consumption and longer jamming distance and effect
Integrated Antenna
All components are included in a single box set, which can be operated by one person with one hand, making it lightweight and practical
Long Battery Life
The equipment comes with a lithium battery that can work normally for 70 minutes
Modularized
Standardized interfaces, plug-and-play modules, strong scalability and convenient maintenance. Standard plug-in frame design, maximum support for 8 independent business modules/15 RF channels, flexible configuration of modules according to demand
Maintainability
Supporting software upgrade, no need to replace the hardware, quickly solve the new 5G frequency band jamming needs, remote upgrade and other functions
Specifications
Parameter Description
Interference Mode SDR (Software Defined Radio)
Interference Frequency Range 8MHz~6500MHz
Whole RF Power ≤350W
Number of RF Modules ≤8
Number of RF Channels ≤15
Antenna Type Omni-directional antenna
Power Consumption

AC 220V/built-in Li-ion power battery pack, supporting seamless switching; battery endurance ≥70 minutes
Power Consumption 1200W
Interference Range

Mobile communication: >40m (environmental background intensity RSRP: -90dBm)

Drone remote control/navigation interference: >500m

Two-way radio: >40m (civil two-way radio, transmitting power: 3W)

Unmanned vehicles/remote control: >40m
Size 570mm*343mm*697mm
Weight <45kg
Protection Level IP42
Working Temperature -20℃~+45℃
