AT-606

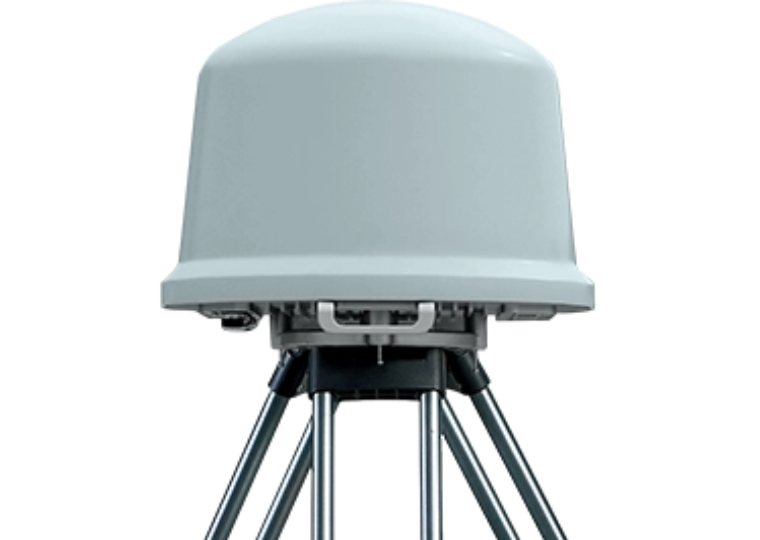

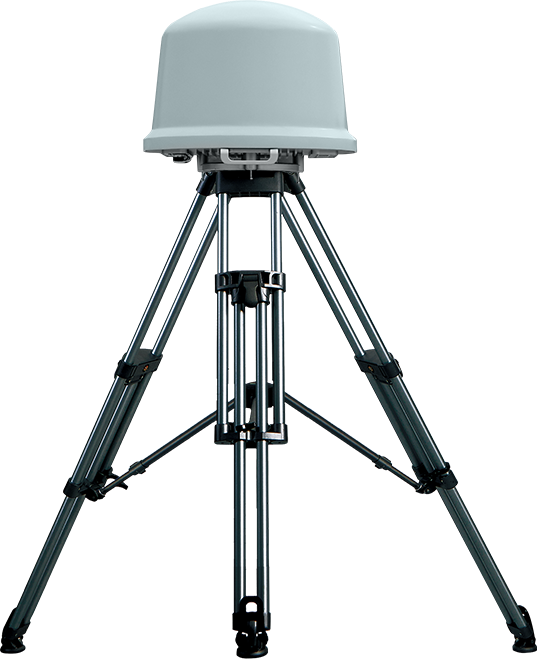

Fixed UAV Detection Equipment
Fixed UAV Detection Equipment, using advanced passive detection technology, can carry out 360° omni-directional detection, identification and direction-finding on various types of UAVs with a long distance. Based on SDR architecture and spectrum AI recognition technology, the detection frequency can be customized. The equipment provides multiple interfaces which enable integration with various equipment. It's equipped with the functions of single-station positioning, accurate identification and trajectory playback.
Features
Passive Detection
No electromagnetic radiation with high concealment, longer detection distance and stronger anti-interference ability
Multi-Frequency Detection
Based on SDR architecture, support multi-frequency band detection of UAV and frequency can be customized
Multi-Target Alarm
Support multiple target intrusion alarm simultaneously (no less than 100 UAVs)
Various Model Identification
Automatically identify over 300 UAV models in the library, as well as unknown ones beyond the library
Positioning and Tracking
Display the real-time info such as distance, angle, height, trajectory, SN code of the UAV and pilot, monitor UAV trends in real-time
Unattended
24/7 automatic detection, can realize all-weather unattended real-time monitoring
Specifications
Parameter Description
Detection Unit Method Radio detection
Frequency Band 30MHz~6000MHz
Signal Types UAV data transmission signal, UAV remote control signal, WiFi signal
Direction 360° omni-directional
Distance 5km~7km (open environment), 1km~2km (urban environment)
Targets Capacity ≥100
Recognizable Model 300+
Positioning Accuracy 5m
Direction-Finding Accuracy 3RMS°
Detection Alarm Support
False Alarm Rate ≤5%
Underreporting Rate ≤5%
Basic Information Size Φ550mm*H425mm
Weight <17kg ( without the bracket )
Power Supply AC220V
Protection Level IP66
Working Temperature -30℃~+55℃
Storage Temperature -40℃~+70℃
*Special Announcement: Due to the conversion period between product updates and online displays, there may be differences between the graphics and textual parameters shown on the page and the actual product. The graphics and textual contents are not used as the actual delivery basis. The specific product and technical parameters are subject to the determined actual product configuration. Customers who intend to purchase, please contact AWP sales personnel in a timely manner to confirm. AWP reserves the right to change image parameters and provide final interpretation.
